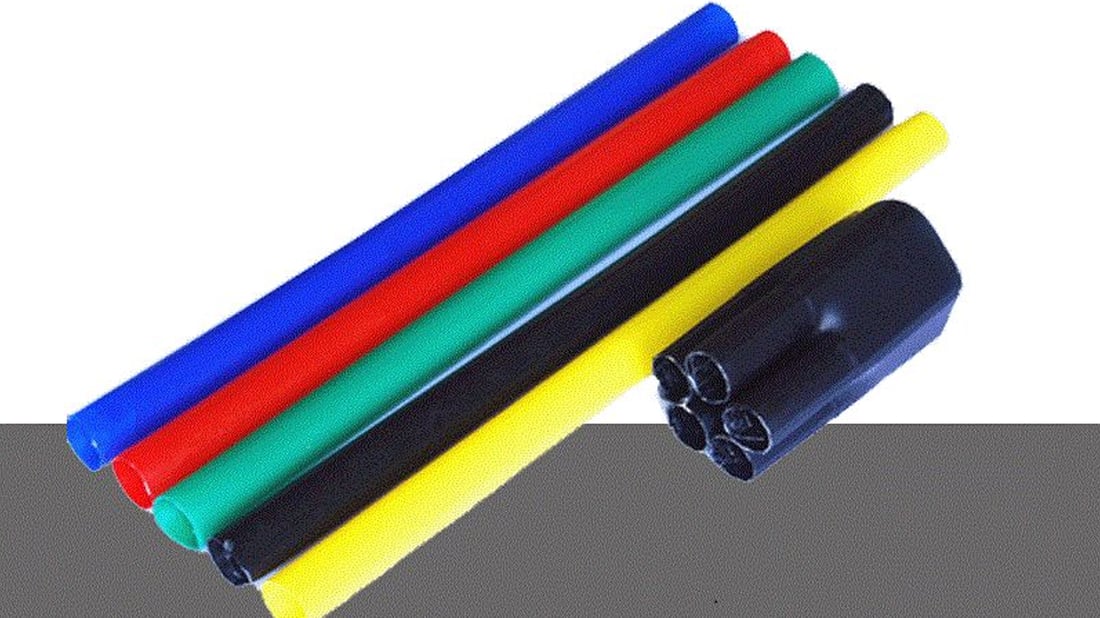

Heat shrink termination tube shrinkage ratios play a crucial role in ensuring the effectiveness of electrical connections. This article will provide an in-depth look at what shrinkage ratios are and why they are important in various applications.
What are Shrinkage Ratios?
Shrinkage ratios refer to the ratio between the expanded diameter of the heat shrink tube and the diameter it will shrink to when heated. Common shrinkage ratios include 2:1, 3:1, and 4:1, with each ratio serving different purposes based on the application requirements.
Importance of Shrinkage Ratios in Termination Tubes
Choosing the right shrinkage ratio is essential to ensure proper sealing and insulation of electrical connections. A higher shrinkage ratio can provide a tighter seal and better strain relief, while a lower ratio may be sufficient for less critical applications.
Factors Affecting Shrinkage Ratios
Several factors can influence the shrinkage ratio of a heat shrink termination tube, including the material composition, wall thickness, and operating temperature range. It is crucial to consider these factors when selecting the appropriate shrinkage ratio for your specific application.
Applications of Different Shrinkage Ratios
Different shrinkage ratios are suitable for various applications. For instance, a 2:1 ratio is commonly used for general insulation purposes, while a 4:1 ratio is preferred for heavy-duty applications that require maximum protection and durability.
Choosing the Right Shrinkage Ratio
When selecting a shrinkage ratio for your heat shrink termination tube, consider the size of the cable or wire you are sealing, the environmental conditions it will be exposed to, and the level of protection required. Consulting with a professional can help ensure you choose the right ratio for your specific needs.
Installation of Heat Shrink Termination Tubes
Proper installation is crucial to ensure the shrinkage ratio performs as intended. Make sure to follow manufacturer guidelines and use the appropriate tools to apply heat evenly and consistently to achieve the desired shrinkage.
Benefits of Using the Correct Shrinkage Ratio
Using the correct shrinkage ratio can provide numerous benefits, including improved electrical insulation, protection against moisture and contaminants, and increased mechanical strength. It can also help prolong the lifespan of electrical connections and reduce the risk of failures.
Common Mistakes to Avoid
One common mistake when using heat shrink termination tubes is selecting the wrong shrinkage ratio for the application. This can lead to inadequate sealing, poor insulation, and potential safety hazards. It is essential to carefully evaluate your requirements and choose the appropriate ratio accordingly.
Conclusion
In conclusion, understanding shrinkage ratios is essential when using heat shrink termination tubes for electrical connections. By selecting the right ratio, following proper installation techniques, and avoiding common mistakes, you can ensure the effectiveness and longevity of your connections.
