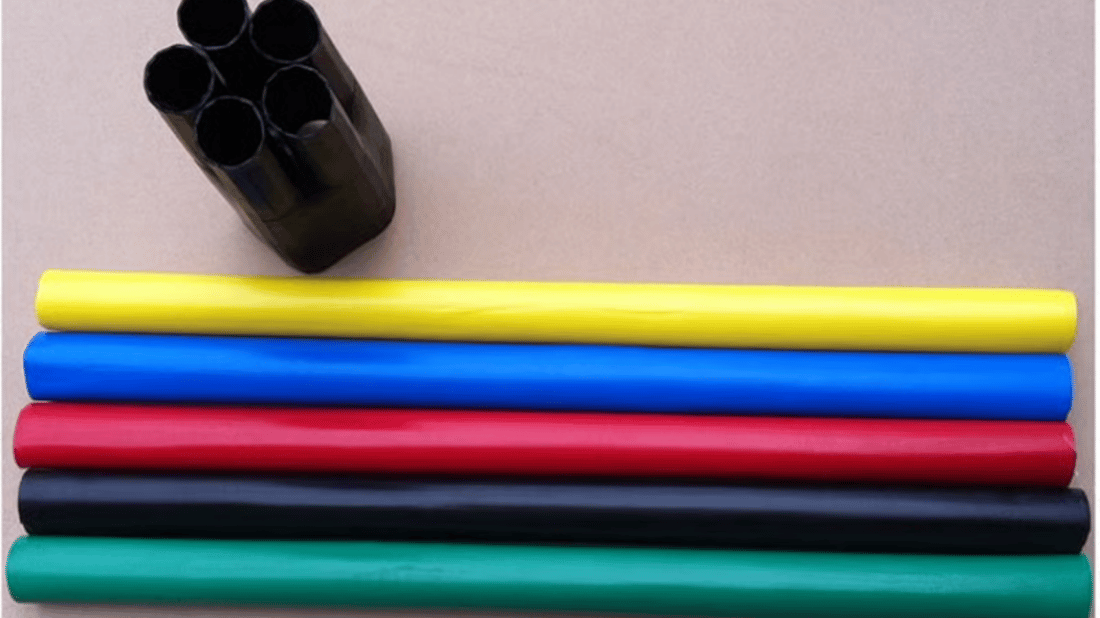

The 1KV five-core heat shrink intermediate connection is a specialized electrical connector designed for low-voltage power cables. Operating at a rated voltage of 1 kilovolt (1KV), this connection type is widely used in power distribution systems to join five-core cables efficiently while ensuring safety and reliability. Its heat shrink design offers robust insulation and mechanical protection by shrinking tightly around cable joints upon heating.
Composition and Material Advantages
Typically constructed from high-quality cross-linked polyolefin, the 1KV five-core heat shrink intermediate connection features excellent thermal, chemical, and electrical resistance. The outer heat shrink sleeve contracts uniformly to provide a hermetic seal. Inside, stress control layers and conductive tubes ensure optimal electrical performance. This material composition significantly enhances the lifespan and durability of cable joints under harsh operating conditions.
Key Applications in Power Distribution Networks
These heat shrink connections are predominantly applied in medium and low-voltage power distribution networks. Their five-core design makes them ideal for three-phase systems requiring neutral and earth continuity. They are especially critical in industrial settings, commercial buildings, and infrastructure projects where secure, long-lasting cable jointing is essential for continuous power supply and operational safety.
Installation Process and Technical Considerations
Installation involves stripping cable insulation, aligning conductor cores, inserting connectors, and applying the heat shrink sleeve over the joint. Heat guns or specialized heating equipment are used to shrink the sleeve evenly for a tight fit. It is important to follow manufacturer’s guidelines on heating time and temperature to avoid damage. Proper installation ensures low electrical resistance and maximum protection against moisture ingress.
Electrical Performance and Safety Features
The 1KV five-core heat shrink intermediate connection delivers excellent dielectric strength suitable for 1KV operations. The heat shrink layer offers superior insulation, preventing short circuits and electrical faults. Additionally, it minimizes corona discharge risks, which could otherwise compromise cable integrity. The integrated earth connection ensures grounding continuity, enhancing system safety.
Environmental Resistance and Longevity
These connections resist environmental factors such as moisture, UV radiation, chemicals, and temperature fluctuations. The heat shrink tubing creates an airtight seal that protects against water ingress and corrosion. This resilience makes the 1KV five-core heat shrink intermediate connection suitable for indoor and outdoor installations, including underground and marine applications, extending the service life of cable joints significantly.
Advantages over Traditional Cable Joints
Compared to conventional mechanical connectors or resin-filled joints, this heat shrink solution offers faster installation, reduced maintenance, and enhanced reliability. The shrinkable sleeve simplifies the jointing process, eliminating messy application of adhesives. Its compact form factor reduces bulk, allowing easier cable management and minimizing space requirements within distribution panels or conduits.
Compatibility with Different Cable Types
The 1KV five-core heat shrink intermediate connection is compatible with a range of cable insulation types, including XLPE, PVC, EPR, and other thermoplastic or thermoset sheaths. Its adaptable design can accommodate various conductor sizes and configurations, making it versatile for diverse electrical installations. This flexibility supports broad implementation across multiple industries and infrastructure projects.
Testing and Quality Assurance Standards
Reliable electrical performance is ensured through strict compliance with international standards like IEC 61442 and GB/T 19666. Testing protocols include high-voltage withstand, insulation resistance, and mechanical strength evaluations. Manufacturers provide certifications guaranteeing that the 1KV five-core heat shrink intermediate connection meets or exceeds these requirements for safe and effective use in power systems.
Future Trends and Innovations in Heat Shrink Cable Joints
Ongoing advancements aim to improve the performance and ease of use of 1KV five-core heat shrink intermediate connections. Innovations include integrating anti-tracking additives to enhance insulation longevity, and incorporating color-coded sleeves for easier phase identification. Additionally, eco-friendly materials and streamlined installation tools are being developed to meet growing industry demands for sustainability and efficiency.
